| Artikelnummer: | 236200303 |
| Beschikbaar in winkel?: | Zie levertijd hieronder. |
| Levertijd: | Op voorraad bij fabrikant, 1 dag later verzonden |

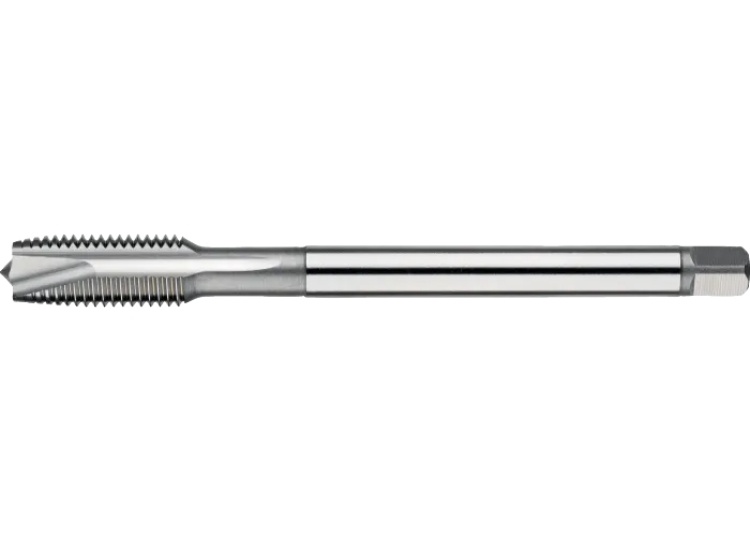

Phantom premium HSSE-Co machinetappen Metrisch Fijn voor doorlopende gaten volgens DIN371/376.
International tools machinetappen zijn budget-vriendelijke tappen die gebruikt worden daar waar er occasioneel tot regelmatig draad gesneden moet worden.
Geschikt voor ongelegeerd staal tot 1000 N/mm², RVS tot 850 N/mm², aluminiumlegeringen en beperkt geschikt voor Koper, Nickel & Titaniumlegeringen.
Specificaties:
| Draad ø (d1) |
Spoed (P) |
Totaallengte (l1) |
Spiraallengte (l2) |
Schacht ø | SW | Voorboor ø |
| MF3 | 0.35 mm | 56 mm | 8 mm | 2.2 mm | / | 2.65 mm |
| MF4 | 0.5 mm | 63 mm | 10 mm | 2.8 mm | 2.1 mm | 3.50 mm |
| MF5 | 0.5 mm | 70 mm | 12 mm | 3.5 mm | 2.7 mm | 4.50 mm |
| MF6 | 0.5 mm | 80 mm | 14 mm | 4.5 mm | 3.4 mm | 5.50 mm |
| MF6 | 0.75 mm | 80 mm | 14 mm | 4.5 mm | 3.4 mm | 5.25 mm |
| MF7 | 0.50 mm | 80 mm | 13 mm | 5.5 mm | 4.3 mm | 6.50 mm |
| MF7 | 0.75 mm | 80 mm | 13 mm | 5.5 mm | 4.3 mm | 6.25 mm |
| MF8 | 0.50 mm | 80 mm | 13 mm | 6 mm | 4.9 mm | 7.50 mm |
| MF8 | 0.75 mm | 80 mm | 19 mm | 6 mm | 4.9 mm | 7.25 mm |
| MF8 | 1.00 mm | 90 mm | 22 mm | 6 mm | 4.9 mm | 7.00 mm |
| MF9 | 0.75 mm | 90 mm | 20 mm | 7 mm | 5.5 mm | 8.25 mm |
| MF9 | 1.00 mm | 90 mm | 20 mm | 7 mm | 5.5 mm | 8.00 mm |
| MF10 | 0.50 mm | 90 mm | 16 mm | 7 mm | 5.5 mm | 9.50 mm |
| MF10 | 0.75 mm | 90 mm | 20 mm | 7 mm | 5.5 mm | 9.25 mm |
| MF10 | 1.00 mm | 90 mm | 20 mm | 7 mm | 5.5 mm | 9.00 mm |
| MF10 | 1.25 mm | 100 mm | 24 mm | 7 mm | 5.5 mm | 8.75 mm |
| MF11 | 1.00 mm | 90 mm | 20 mm | 8 mm | 6.2 mm | 10.00 mm |
| MF11 | 1.25 mm | 90 mm | 20 mm | 8 mm | 6.2 mm | 9.75 mm |
| MF12 | 0.50 mm | 100 mm | 22 mm | 9 mm | 7 mm | 11.50 mm |
| MF12 | 0.75 mm | 100 mm | 22 mm | 9 mm | 7 mm | 11.25 mm |
| MF12 | 1.00 mm | 100 mm | 22 mm | 9 mm | 7 mm | 11.00 mm |
| MF12 | 1.25 mm | 100 mm | 22 mm | 9 mm | 7 mm | 10.75 mm |
| MF12 | 1.50 mm | 100 mm | 22 mm | 9 mm | 7 mm | 10.50 mm |
| MF13 | 1.00 | 100 mm | 22 mm | 11 mm | 9 mm | 12.00 mm |
| MF14 | 1.00 mm | 100 mm | 22 mm | 11 mm | 9 mm | 13.00 mm |
| MF14 | 1.25 mm | 100 mm | 22 mm | 11 mm | 9 mm | 12.75 mm |
| MF14 | 1.50 mm | 100 mm | 22 mm | 11 mm | 9 mm | 12.50 mm |
| MF15 | 1.00 mm | 100 mm | 22 mm | 12 mm | 9 mm | 14.00 mm |
| MF15 | 1.50 mm | 100 mm | 22 mm | 12 mm | 9 mm | 13.50 mm |
| MF16 | 1.00 mm | 100 mm | 22 mm | 12 mm | 9 mm | 15.00 mm |
| MF16 | 1.25 mm | 100 mm | 22 mm | 12 mm | 9 mm | 14.75 mm |
| MF16 | 1.50 mm | 100 mm | 22 mm | 12 mm | 9 mm | 14.50 mm |
| MF18 | 1.00 mm | 110 mm | 25 mm | 14 mm | 11 mm | 17.00 mm |
| MF18 | 1.50 mm | 110 mm | 25 mm | 14 mm | 11 mm | 16.50 mm |
| MF18 | 2.00 mm | 125 mm | 30 mm | 14 mm | 11 mm | 16.00 mm |
| MF20 | 1.00 mm | 125 mm | 25 mm | 16 mm | 12 mm | 19.00 mm |
| MF20 | 1.50 mm | 125 mm | 25 mm | 16 mm | 12 mm | 18.50 mm |
| MF20 | 2.00 mm | 140 mm | 25 mm | 16 mm | 12 mm | 18.00 mm |
| MF22 | 1.50 mm | 125 mm | 25 mm | 18 mm | 14.5 mm | 20.50 mm |
| MF24 | 1.50 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 22.50 mm |
| MF24 | 2.00 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 22.00 mm |
| MF25 | 1.00 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 24.00 mm |
| MF25 | 1.50 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 23.50 mm |
| MF25 | 2.00 | 140 mm | 28 mm | 18 mm | 14.5 mm | 23.00 mm |
| MF26 | 1.50 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 24.50 mm |
| MF27 | 1.50 mm | 140 mm | 28 mm | 20 mm | 16 mm | 25.50 mm |
| MF27 | 2.00 mm | 140 mm | 28 mm | 20 mm | 16 mm | 25.00 mm |
| MF28 | 1.50 mm | 140 mm | 28 mm | 20 mm | 16 mm | 26.50 mm |
| MF30 | 1.00 mm | 150 mm | 28 mm | 22 mm | 18 mm | 29.00 mm |
| MF30 | 1.50 mm | 150 mm | 28 mm | 22 mm | 18 mm | 28.50 mm |
| MF30 | 2.00 mm | 150 mm | 28 mm | 22 mm | 18 mm | 28.00 mm |
| MF32 | 1.50 mm | 150 mm | 28 mm | 22 mm | 18 mm |
30.50 mm |
| MF33 | 1.50 mm | 160 mm | 30 mm | 25 mm | 20 mm |
31.50 mm |
| MF33 | 2.00 mm | 160 mm | 30 mm | 25 mm | 20 mm |
31.00 mm |
| MF34 | 1.50 mm | 170 mm | 30 mm | 28 mm | 22 mm |
32.50 mm |
| MF35 | 1.50 mm | 170 mm | 30 mm | 28 mm | 22 mm |
33.50 mm |
| MF36 | 1.50 mm | 170 mm | 30 mm | 28 mm | 22 mm |
34.50 mm |
| MF36 | 2.00 mm | 170 mm | 30 mm | 28 mm | 22 mm |
34.00 mm |
| MF36 | 3.00 mm | 200 mm | 50 mm | 28 mm | 22 mm |
33.00 mm |
| MF38 | 1.50 mm | 170 mm | 30 mm | 28 mm | 22 mm |
36.50 mm |
| MF40 | 1.50 mm | 170 mm | 30 mm | 32 mm | 24 mm |
38.50 mm |
| MF42 | 1.50 mm | 170 mm | 30 mm | 32 mm | 24 mm |
40.50 mm |
| MF42 | 2.00 mm | 170 mm | 30 mm | 32 mm | 24 mm |
40.00 mm |
| MF42 | 3.00 mm | 200 mm | 45 mm | 32 mm | 24 mm |
39.00 mm |
| MF45 | 1.50 mm | 180 mm | 32 mm | 36 mm | 29 mm |
43.50 mm |
| MF45 | 2.00 mm | 180 mm | 32 mm | 36 mm | 29 mm |
43.00 mm |
| MF48 | 1.50 mm | 190 mm | 32 mm | 36 mm | 29 mm |
46.50 mm |
| MF50 | 1.50 mm | 190 mm | 32 mm | 36 mm | 29 mm |
48.50 mm |
| MF52 | 1.50 mm | 190 mm | 32 mm | 40 mm | 32 mm |
50.50 mm |
