| Artikelnummer: | 114610910 |
| Beschikbaar in winkel?: | Zie levertijd hieronder. |
| Levertijd: | Op voorraad bij fabrikant, 1 dag later verzonden |

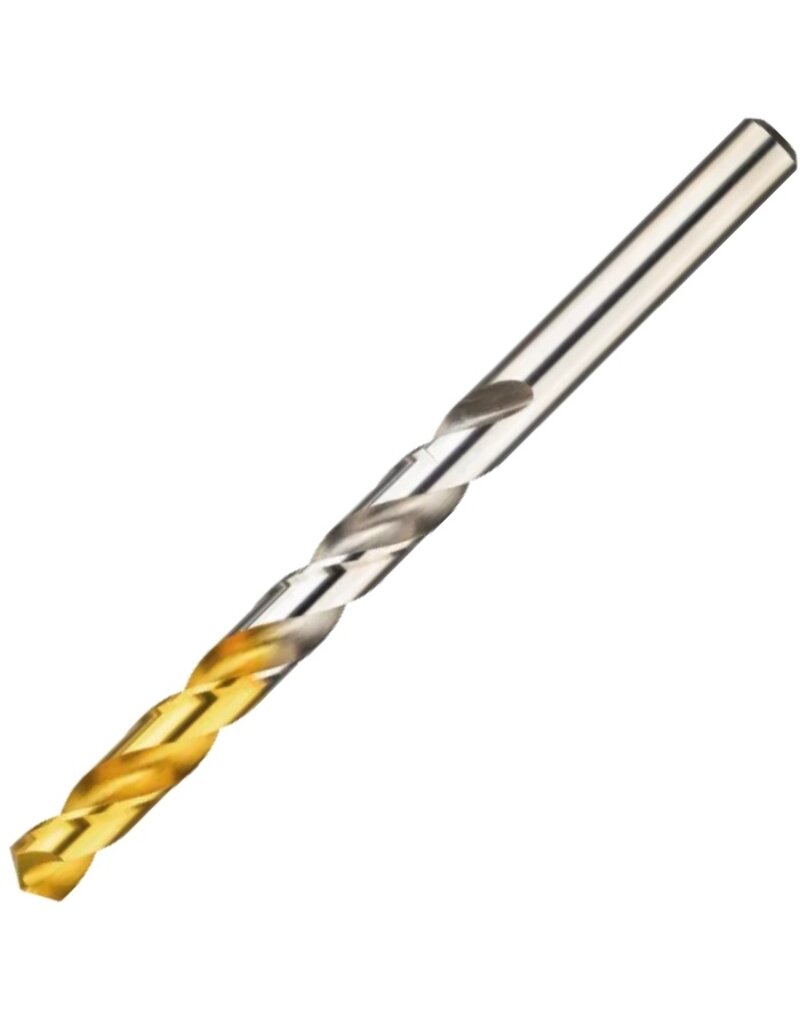

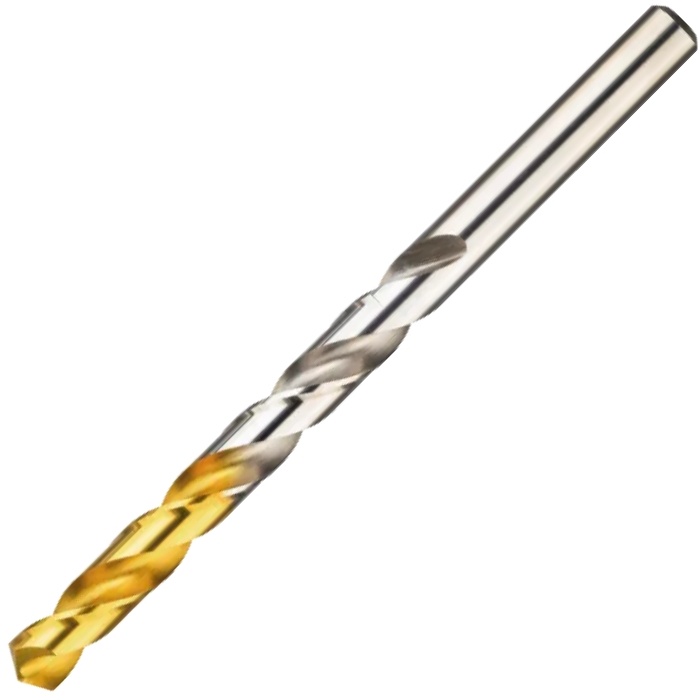

HSS kwaliteitsboor van het merk Phantom volgens DIN 338.
Geslepen HSS boor met kruisaanslijping (vanaf 1,6mm) en tophoek van 118°, voorzien van TiN-tip coating voor langere standtijd en optimale spanenafvoer.
Door zijn geoptimaliseerde geometrie (aangescherpte spiraalhoek) is hij uiterst geschikt voor licht en snel boren bij handgebruik.
TIP; Gebruik lage snijkrachten, sneller boren.
Specificaties:
| Boordiameter (d1) | Spiraallengte (l2) | Totaallengte (l1) | Schacht ø (d2) | Schachttype | Coating |
| 9.1mm | 81mm | 125mm | 9.1mm | Cilindrisch | TiN |
| 9.2mm | 81mm | 125mm | 9.2mm | Cilindrisch | TiN |
| 9.3mm | 81mm | 125mm | 9.3mm | Cilindrisch | TiN |
| 9.4mm | 81mm | 125mm | 9.4mm | Cilindrisch | TiN |
| 9.5mm | 81mm | 125mm | 9.5mm | Cilindrisch | TiN |
| 9.6mm | 87mm | 133mm | 9.6mm | Cilindrisch | TiN |
| 9.7mm | 87mm | 133mm | 9.7mm | Cilindrisch | TiN |
| 9.8mm | 87mm | 133mm | 9.8mm | Cilindrisch | TiN |
| 9.9mm | 87mm | 133mm | 9.9mm | Cilindrisch | TiN |
| 10.0mm | 87mm | 133mm | 10.0mm | Cilindrisch | TiN |
| 10.1mm | 87mm | 133mm | 10.1mm | Cilindrisch | TiN |
| 10.2mm | 87mm | 133mm | 10.2mm | Cilindrisch | TiN |
| 10.3mm | 87mm | 133mm | 10.3mm | Cilindrisch | TiN |
| 10.4mm | 87mm | 133mm | 10.4mm | Cilindrisch | TiN |
| 10.5mm | 87mm | 133mm | 10.5mm | Cilindrisch | TiN |
| 10.6mm | 87mm | 133mm | 10.6mm | Cilindrisch | TiN |
| 10.7mm | 94mm | 142mm | 10.7mm | Cilindrisch | TiN |
| 10.8mm | 94mm | 142mm | 10.8mm | Cilindrisch | TiN |
| 10.9mm | 94mm | 142mm | 10.9mm | Cilindrisch | TiN |
| 11.0mm | 94mm | 142mm | 11.0mm | Cilindrisch | TiN |
| 11.1mm | 94mm | 142mm | 11.1mm | Cilindrisch | TiN |
| 11.2mm | 94mm | 142mm | 11.2mm | Cilindrisch | TiN |
| 11.3mm | 94mm | 142mm | 11.3mm | Cilindrisch | TiN |
| 11.4mm | 94mm | 142mm | 11.4mm | Cilindrisch | TiN |
| 11.5mm | 94mm | 142mm | 11.5mm | Cilindrisch | TiN |
| 11.6mm | 94mm | 142mm | 11.6mm | Cilindrisch | TiN |
| 11.7mm | 94mm | 142mm | 11.7mm | Cilindrisch | TiN |
| 11.8mm | 94mm | 142mm | 11.8mm | Cilindrisch | TiN |
| 11.9mm | 101mm | 151mm | 11.9mm | Cilindrisch | TiN |
| 12.0mm | 101mm | 151mm | 12.0mm | Cilindrisch | TiN |
| 12.1mm | 101mm | 151mm | 12.1mm | Cilindrisch | TiN |
| 12.2mm | 101mm | 151mm | 12.2mm | Cilindrisch | TiN |
| 12.3mm | 101mm | 151mm | 12.3mm | Cilindrisch | TiN |
| 12.4mm | 101mm | 151mm | 12.4mm | Cilindrisch | TiN |
| 12.5mm | 101mm | 151mm | 12.5mm | Cilindrisch | TiN |
| 12.6mm | 101mm | 151mm | 12.6mm | Cilindrisch | TiN |
| 12.7mm | 101mm | 151mm | 12.7mm | Cilindrisch | TiN |
| 12.8mm | 101mm | 151mm | 12.8mm | Cilindrisch | TiN |
| 12.9mm | 101mm | 151mm | 12.9mm | Cilindrisch | TiN |
| 13.0mm | 101mm | 151mm | 13.0mm | Cilindrisch | TiN |
| 13.5mm | 108mm | 160mm | 13.5mm | Cilindrisch | TiN |
| 14.0mm | 108mm | 160mm | 14.0mm | Cilindrisch | TiN |
| 14.5mm | 114mm | 169mm | 14.5mm | Cilindrisch | TiN |
| 15.0mm | 114mm | 169mm | 15.0mm | Cilindrisch | TiN |
| 15.5mm | 120mm | 178mm | 15.5mm | Cilindrisch | TiN |
| 16.0mm | 120mm | 178mm | 16.0mm | Cilindrisch | TiN |
